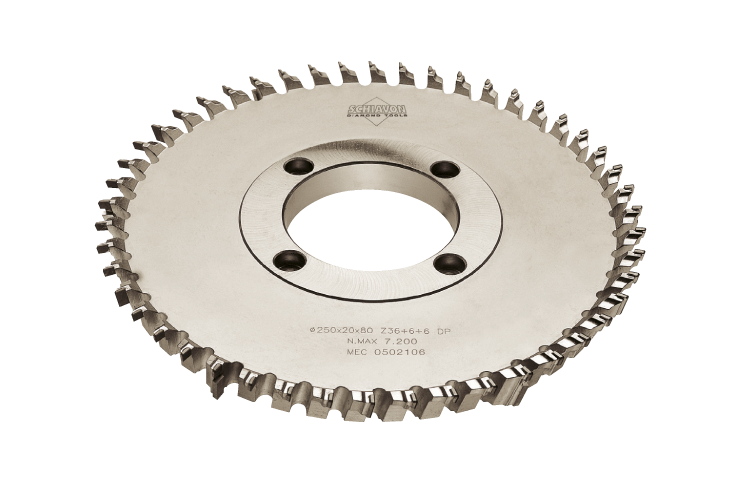

Compact Hoggers for Long Side Cut

WORKINGS

Chipping

Long side chipping

PERFORMANCES More info

Drawings and Specs Chart

Technical drawings

FIXAIR SYSTEM 160

FIXAIR SYSTEM 161

FIXAIR SYSTEM 162 MECHANICAL OR HYDRO SLEEVES TYPE EI

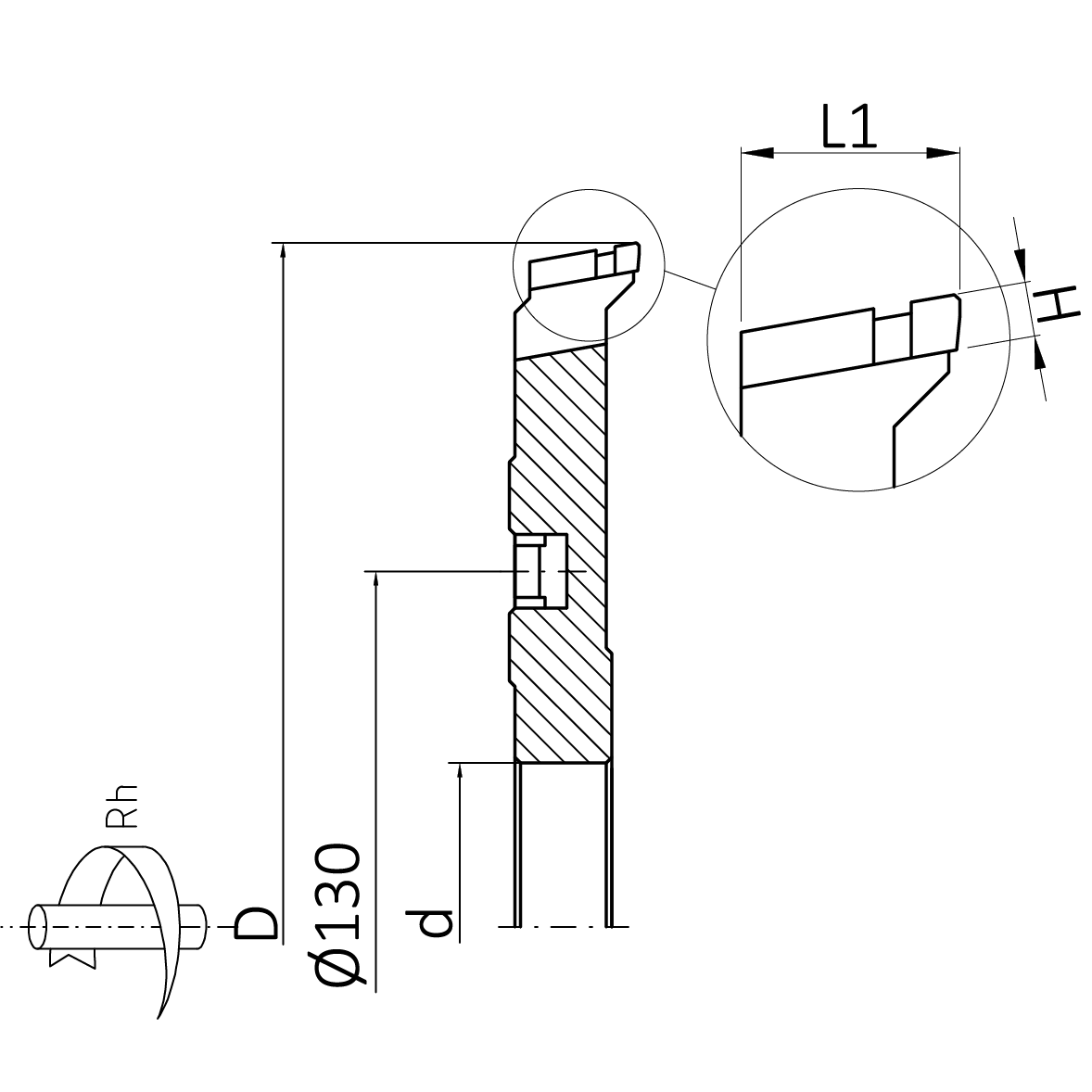

FIXAIR SYSTEM 160

Table


502020	502021	250	10	-	60	5
502022	502023	250	10	-	60	6
502024	502025	250	10	-	60	5
502026	502027	250	10	-	60	6
502028	502029	250	10	-	60	5
502030	502031	250	10	-	60	6
502032	502033	250	10	-	60	5
502034	502035	250	10	-	60	6
502036	502037	250	20	-	60	5
502038	502039	250	20	-	60	6
502040	502041	250	20	-	60	5
502042	502043	250	20	-	60	6
502044	502045	250	20	-	60	5
502046	502047	250	20	-	60	6
502048	502049	250	20	-	60	5
502050	502051	250	20	-	60	6

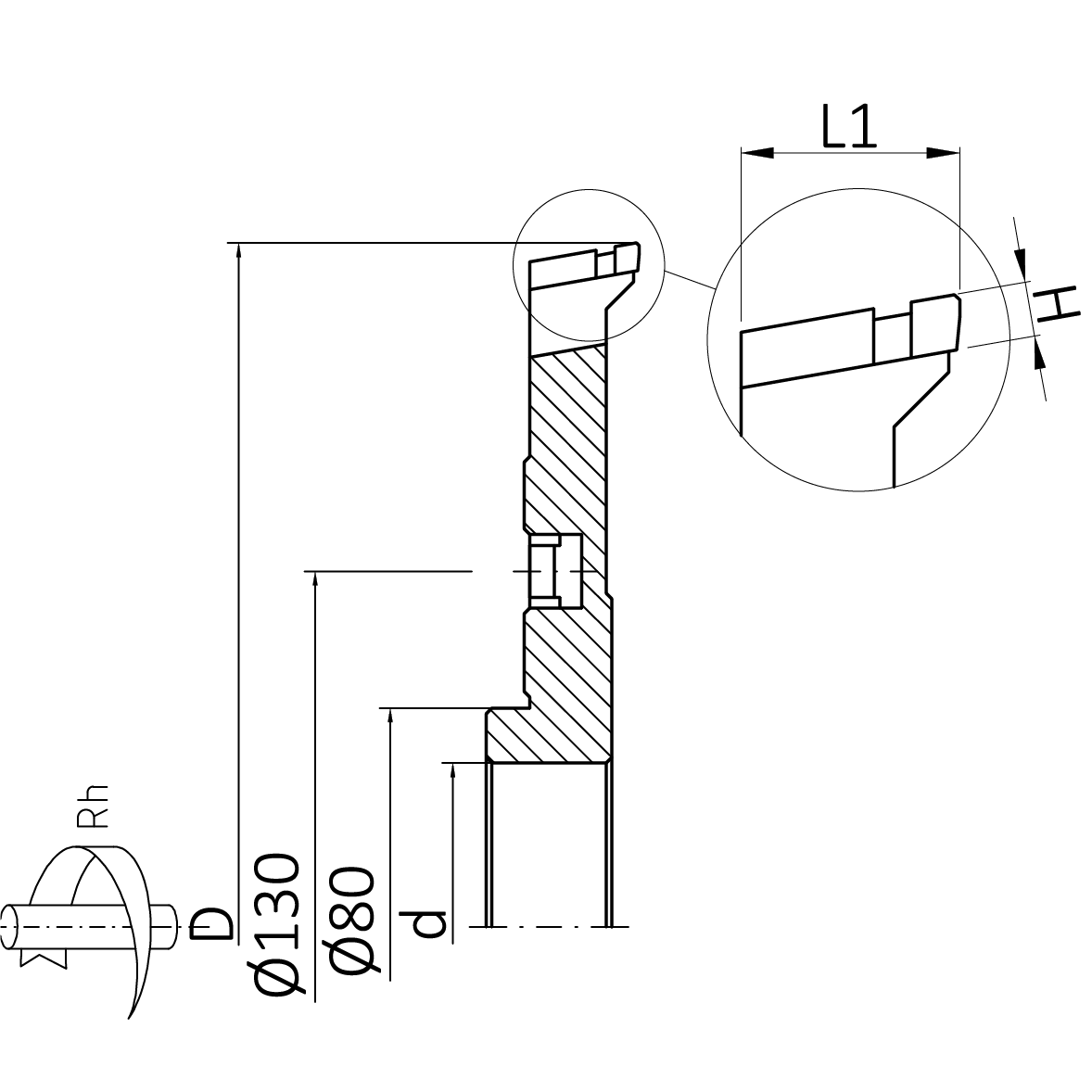

FIXAIR SYSTEM 161

Table


502052	502053	250	10	-	60	5
502054	502055	250	10	-	60	6
502056	502057	250	10	-	60	5
502058	502059	250	10	-	60	6
502060	502061	250	10	-	60	5
502062	502063	250	10	-	60	6
502064	502065	250	10	-	60	5
502066	502067	250	20	-	60	6
502068	502069	250	20	-	60	5
502070	502071	250	20	-	60	6
502072	502073	250	20	-	60	5
502074	502075	250	20	-	60	6
502076	502077	250	20	-	60	5
502078	502079	250	20	-	60	6
502080	502081	250	20	-	60	5
502082	502083	250	20	-	60	6

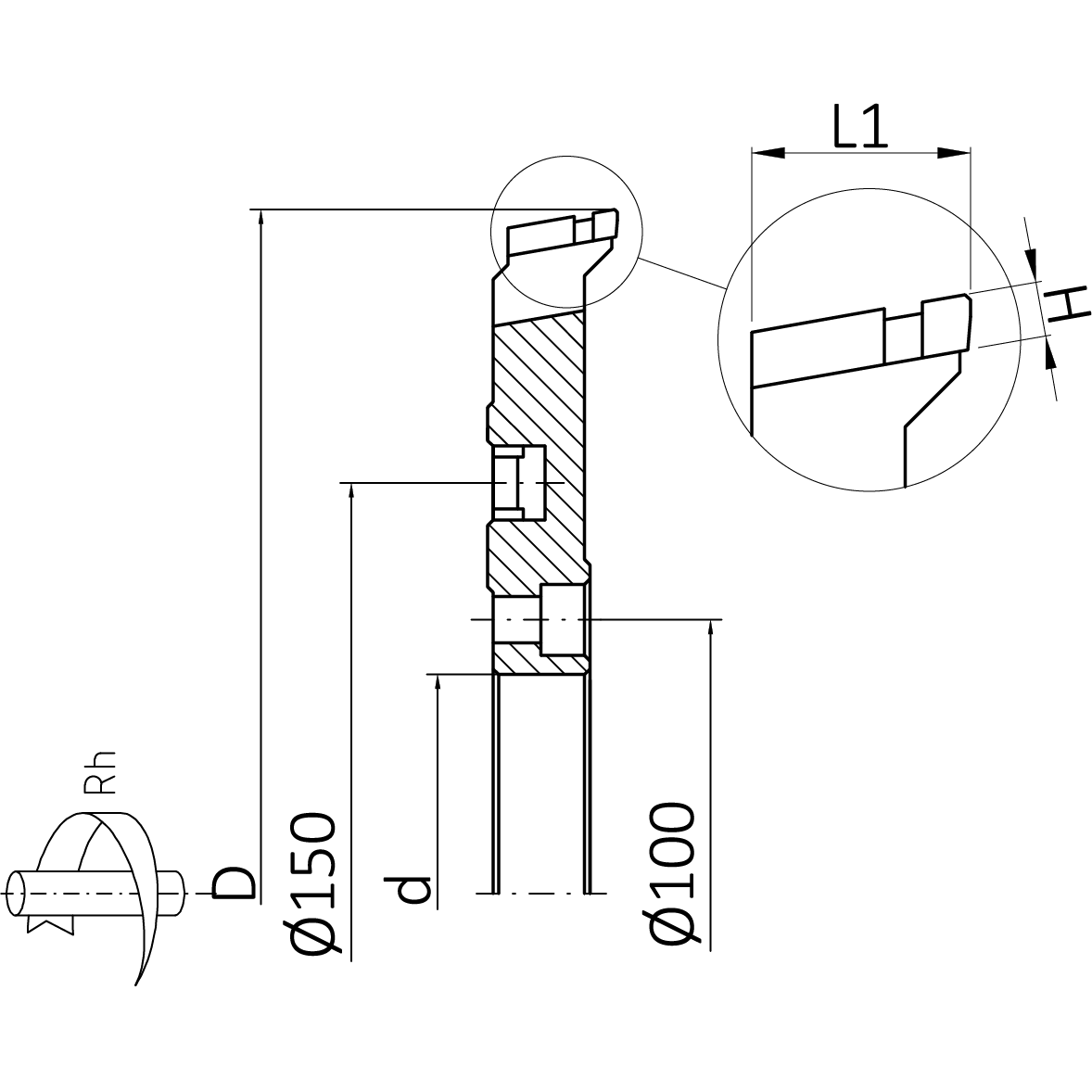

FIXAIR SYSTEM 192 , MECHANICAL OR HYDRO SLEEVES TYPE EI

Table


502084	502085	200	20	-	80	5
502086	502087	200	20	-	80	6
502088	502089	250	10	-	80	5
502090	502091	250	10	-	80	6
502092	502093	250	10	-	80	5
502094	502095	250	10	-	80	6
502096	502097	250	10	-	80	5
502098	502099	250	10	-	80	6
502100	502101	250	10	-	80	5
502102	502103	250	10	-	80	6
502104	502105	250	20	-	80	5
502106	502107	250	20	-	80	6
502108	502109	250	20	-	80	5
502110	502111	250	20	-	80	6
502112	502113	250	20	-	80	5
502114	502115	250	20	-	80	6
502116	502117	250	20	-	80	5
502118	502119	250	20	-	80	6

Applications:
With feed hogging of long side of panels.

Machines:
Squaring and edge banding machines using top & bottom Hogger.

Materials:
Chipboard, MDF, honeycomb and plywood panels with or without veneer, melamine, paper or plastic coatings.

Technical Features:
ATB+ATB tooth shape with shear angle. Possibility of re-sharpening tooth side. Reinforced low-vibration body with generous dust flow. Fitting mechanical or quick coupling Hydro sleeves. N max 7.200

Re-sharpening:
H 5 up to 10 times
H 6 up to 13 times

Contact us for a quote
