Adjustable Grooving Cutters

WORKINGS

Groove horiz. vert.

PERFORMANCES More info

Drawings and Specs Chart

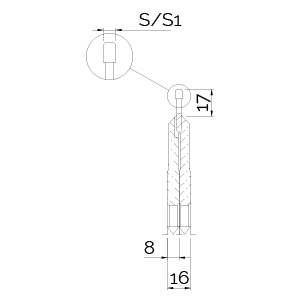

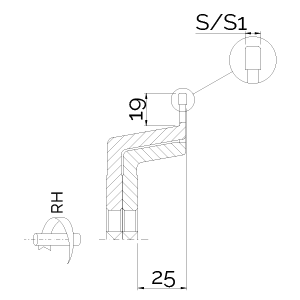

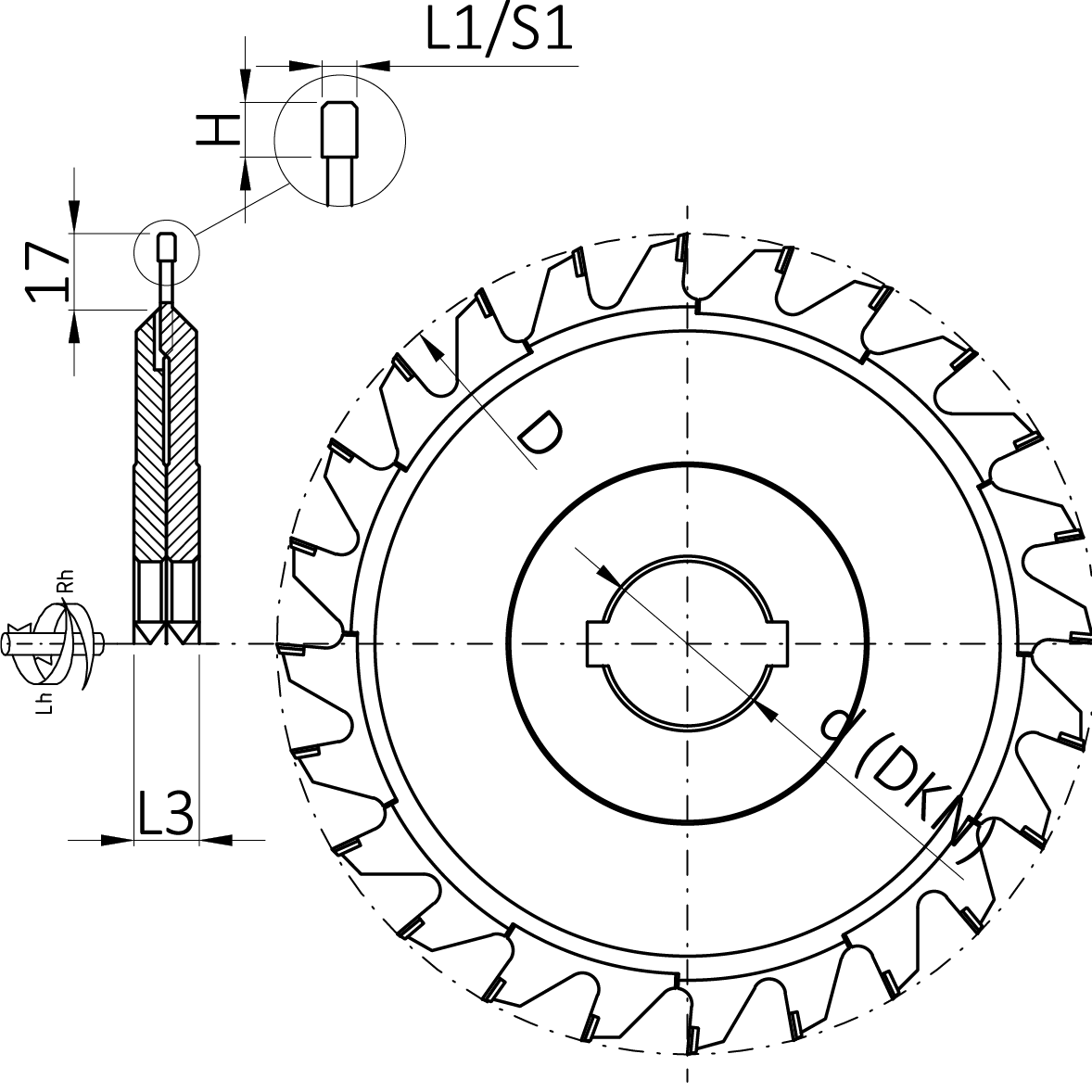

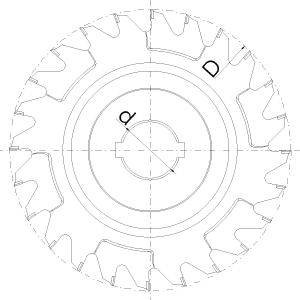

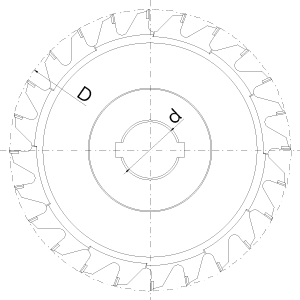

Technical drawings

Normale

Table


2100020	80	3 ,2	5 ,5	20	16	6+6	5
2100022	100	3 ,2	5 ,5	30	16	6+6	5
2100024	100	3 ,2	5 ,5	30	16	8+8	5
2100026	100	6	11	30	16	8+8	5
2100028	125	3 ,2	5 ,5	30	16	6+6	5
2100030	125	3 ,2	5 ,5	30	16	8+8	5
2100032	125	3 ,2	5 ,5	30	16	12+12	5
2100034	125	4	7 ,5	30	16	6+6	5
2100036	125	4	7 ,5	30	16	8+8	5
2100038	125	4	7 ,5	30	16	12+12	5
2100040	125	6	11	30	16	12+12	5
2100042	150	3 ,2	5 ,5	30	16	6+6	5
2100044	150	3 ,2	5 ,5	30	16	8+8	5
2100046	150	3 ,2	5 ,5	30	16	12+12	5
2100048	150	4	7 ,5	30	16	6+6	5
2100050	150	4	7 ,5	30	16	8+8	5
2100052	150	4	7 ,5	30	16	12+12	5
2100054	150	6	11	30	16	12+12	5
2100056	180	3 ,2	5 ,5	35	16	8+8	5
2100058	180	3 ,2	5 ,5	35	16	12+12	5
2100060	180	3 ,2	5 ,5	35	16	18+18	5
2100062	180	4	7 ,5	35	16	8+8	5
2100064	180	4	7 ,5	35	16	12+12	5
2100066	180	4	7 ,5	35	16	18+18	5
2100068	180	6	11	35	16	12+12	5
2100070	200	3 ,2	5 ,5	40	16	8+8	5
2100072	200	3 ,2	5 ,5	40	16	12+12	5
2100074	200	3 ,2	5 ,5	40	16	18+18	5
2100076	200	4	7 ,5	40	16	8+8	5
2100078	200	4	7 ,5	40	16	12+12	5
2100080	200	4	7 ,5	40	16	18+18	5
2100082	200	6	11	40	16	18+18	5

Applications:
Used for panel grooving with bevel on both sides, with or against feed direction.

Machines:
Squaring, edge banding machines and CNC Routers.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Long lasting FZ tooth shape, positive rake cutting. The decimal adjustment by means of ground shims allows to change slot size. Reinforced steel body.

Re-sharpening:
up to 10 times

Contact us for a quote
