MULTICUT Adjustable Jointing Cutter

WORKINGS

1 side double vertical finish

2 sides vertical finish

PERFORMANCES More info

Drawings and Specs Chart

Technical drawings

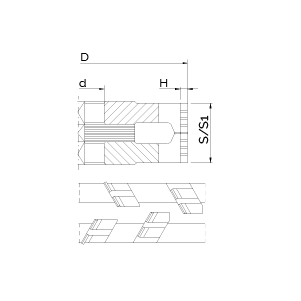

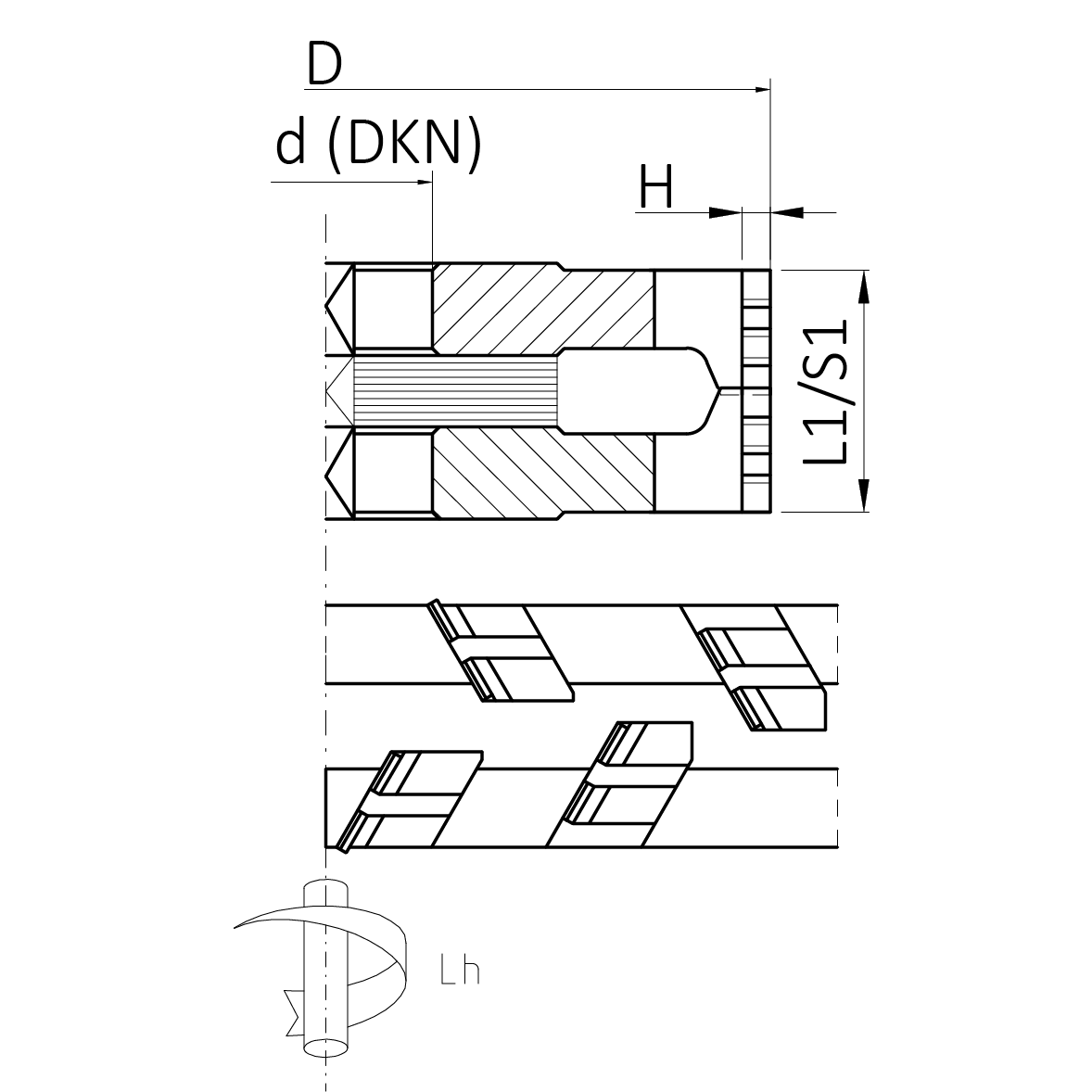

TYPE 1

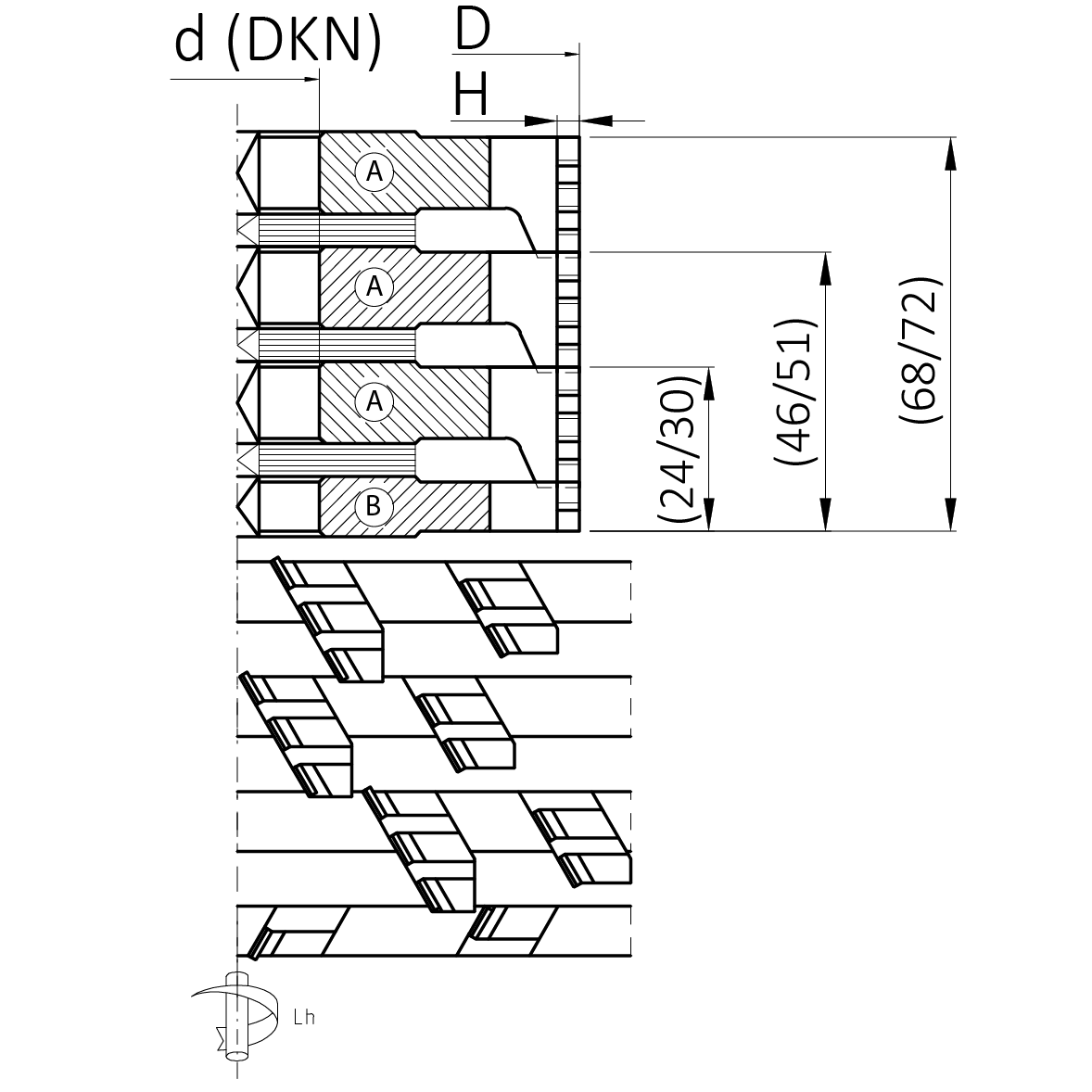

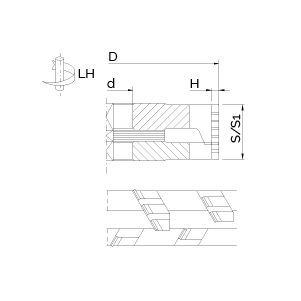

TYPE 2

TYPE 1

Table


901020	-	80	24	34	30	3	4
901024	-	80	32	48	30	3	4
901028	-	85	22	34	30	3	4
901030	-	100	22	34	30	3	4
901034	-	100	22	34	30	4	4
901050	-	180	22	34	35	4	5
901052	-	180	22	34	35	6	5
901060	-	200	22	34	35	5	5
901066	-	200	22	34	35	6	5
901082	-	200	22	34	40	5	5
901088	-	200	22	34	40	6	5

TYPE 2

Table


901022	901023	80	24	30	30	3	5
901032	901033	100	24	30	30	3	5
901036	901037	100	24	30	30	4	5
901038	901039	100	46	51	30	3	5
901040	901041	125	24	30	30	3	5
901042	901043	125	24	30	30	4	5
901044	901045	125	24	30	30	5	5
901046	901047	125	46	51	30	3	5
901048	901049	150	24	30	30	4	5
901054	901055	180	24	30	35	4	5
901056	901057	180	24	30	35	6	5
901058	901059	180	46	51	35	6	5
901062	901063	200	24	30	35	5	5
901064	901065	200	46	51	35	5	5
901068	901069	200	24	30	35	6	5
901070	901071	200	46	51	35	6	5
901072	901073	200	68	72	35	6	5
901074	901075	200	24	30	35	8	5
901076	901077	200	46	51	35	8	5
901078	901079	200	24	30	35	12	5
901080	901081	200	46	51	35	12	5
901084	901085	200	24	30	40	5	5
901086	901087	200	46	51	40	5	5
901090	901091	200	24	30	40	6	5
901092	901093	200	46	51	40	6	5
901094	901095	200	68	72	40	6	5
901096	901097	200	24	30	40	8	5
901098	901099	200	46	51	40	8	5
901100	901101	200	68	72	40	8	5
901102	901103	200	24	30	40	12	5
901104	901105	200	46	51	40	12	5
901106	901107	200	68	72	40	12	5

Applications:
Panel finishing both against and with flow feed. A dramatic reduction of cutting effort is achieved with these tools.

Machines:
Squaring and edge banding machines with flush trimming capability.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Smaller tips for a smoother and more silent cut. The decimal adjustment by means of ground shims allows to change wearing line. Spiral wound tips with shear angle for best finishing on coated panels. Optimized tip pocket design for fast dust flow. Recommended when high removal rate is required.

Re-sharpening:
H 4 up to 8 times
H 5 up to 10 times
