MULTICUT Jointing Cutter

WORKINGS

1 side double vertical finish

2 sides vertical finish

PERFORMANCES More info

Drawings and Specs Chart

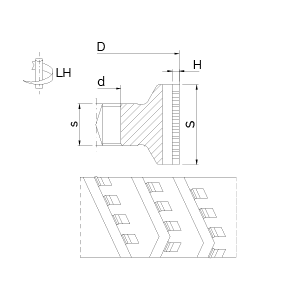

Technical drawings

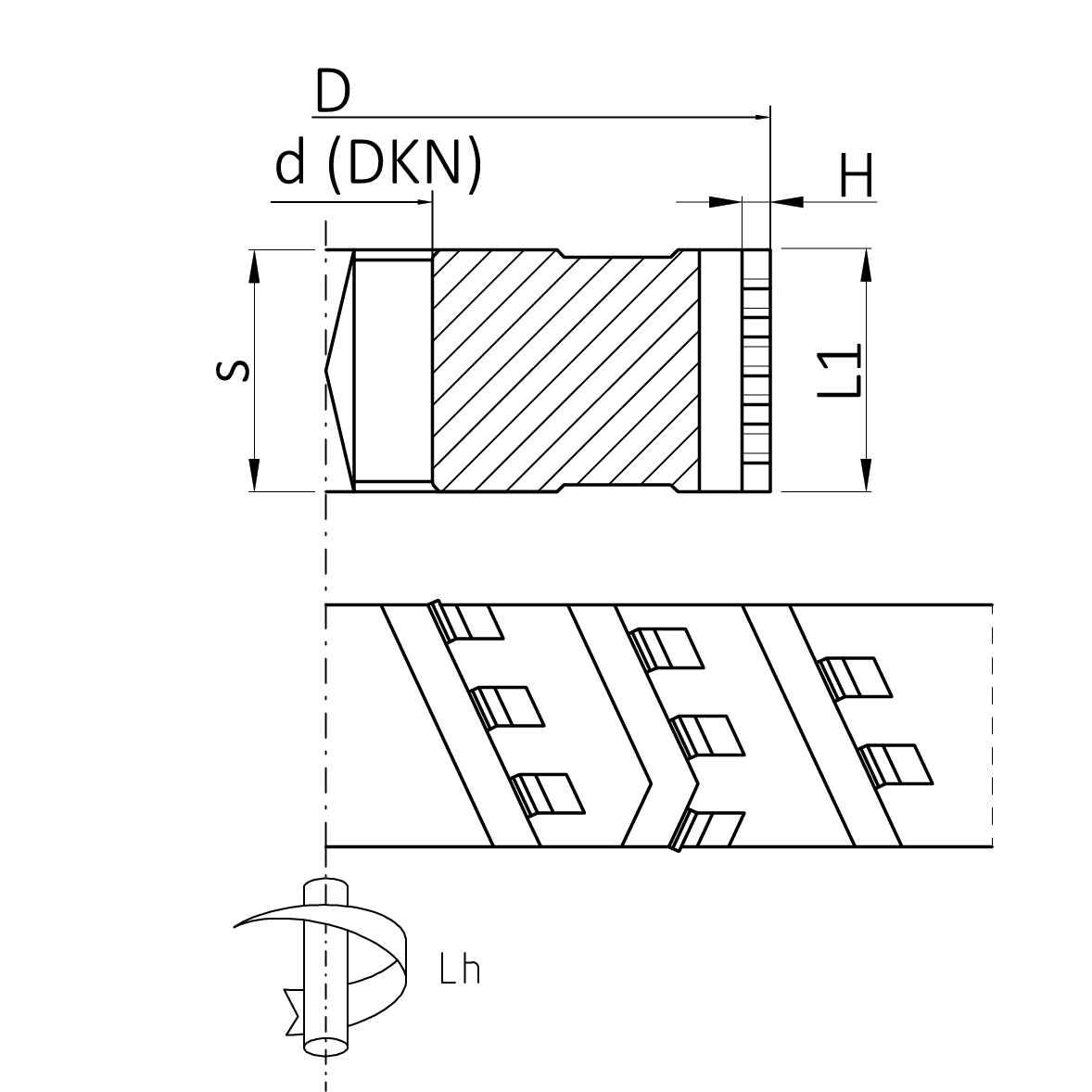

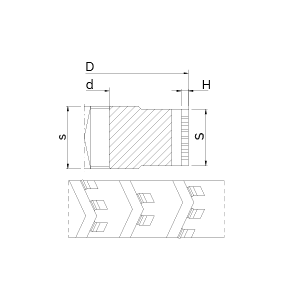

TYPE 1

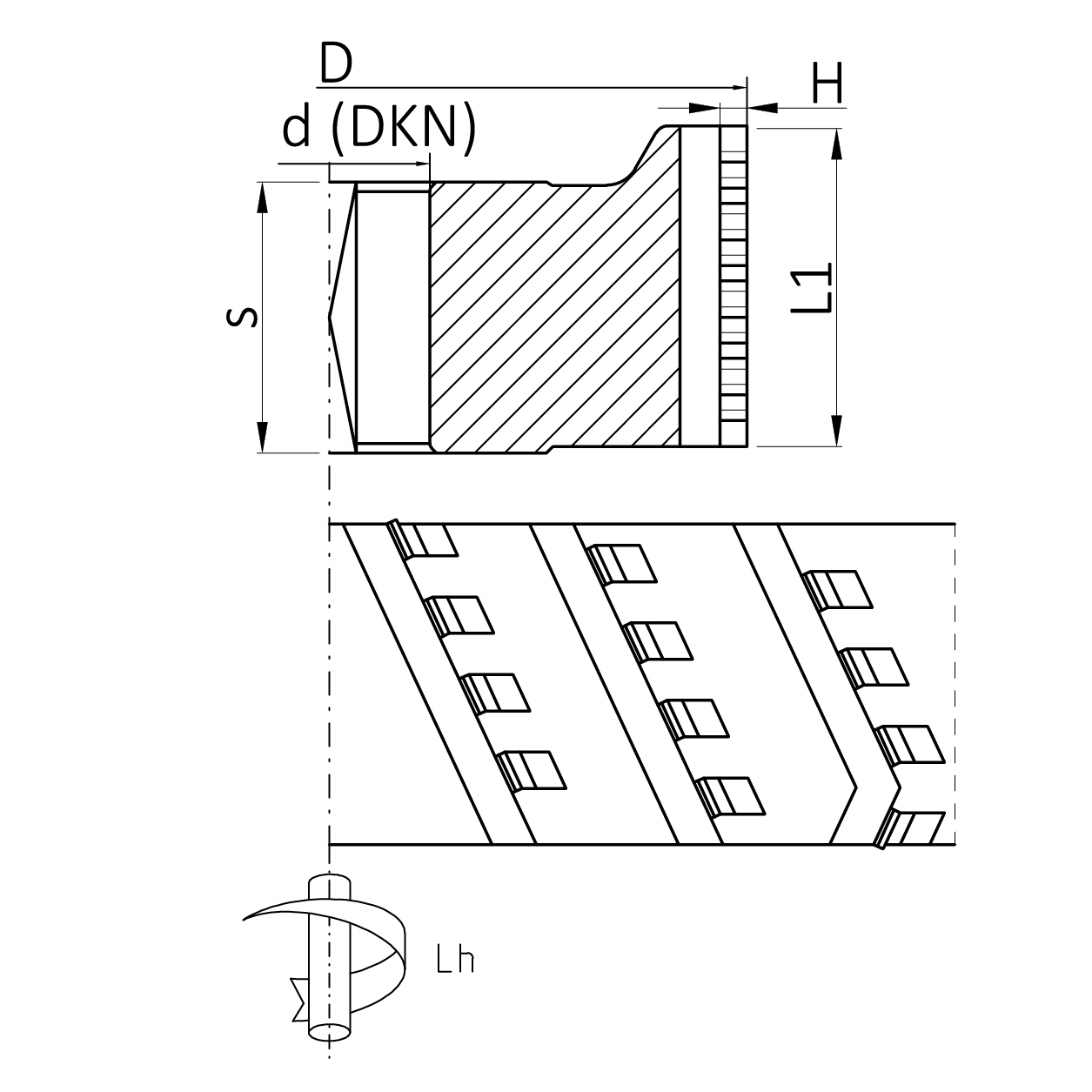

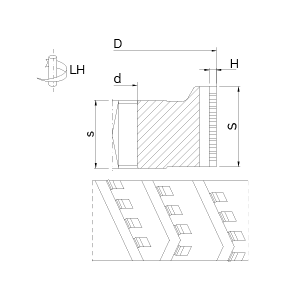

TYPE 2

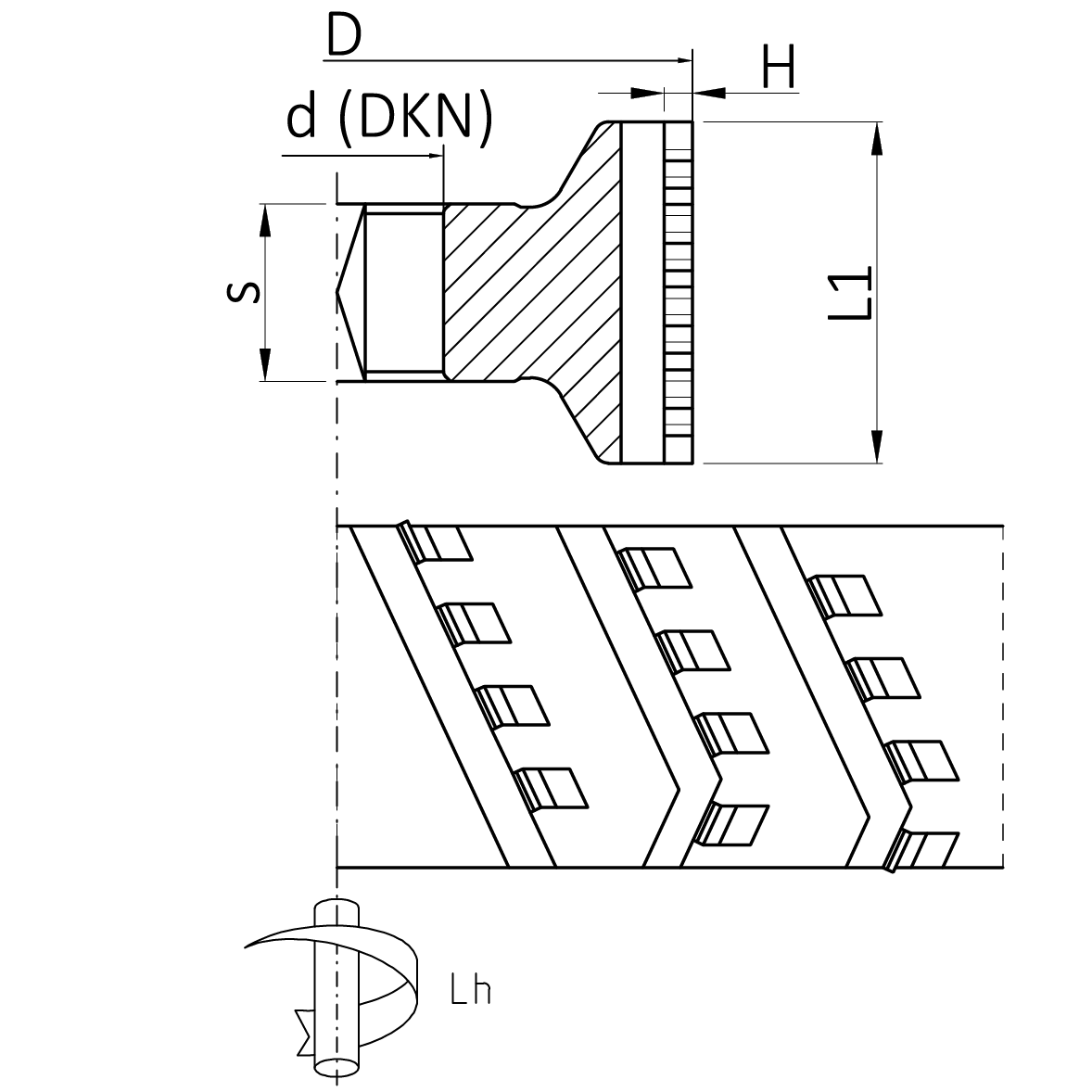

TYPE 3

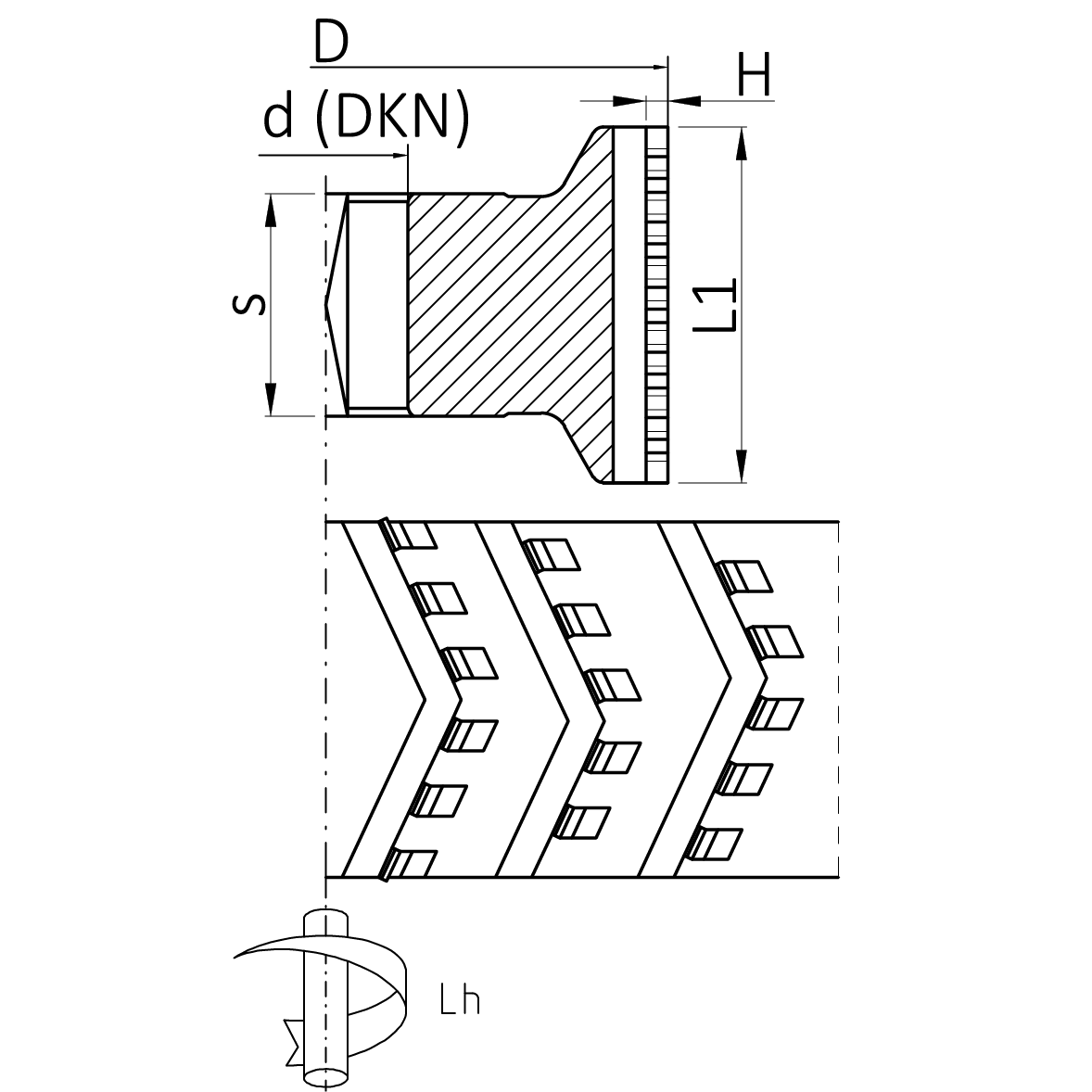

TYPE 6

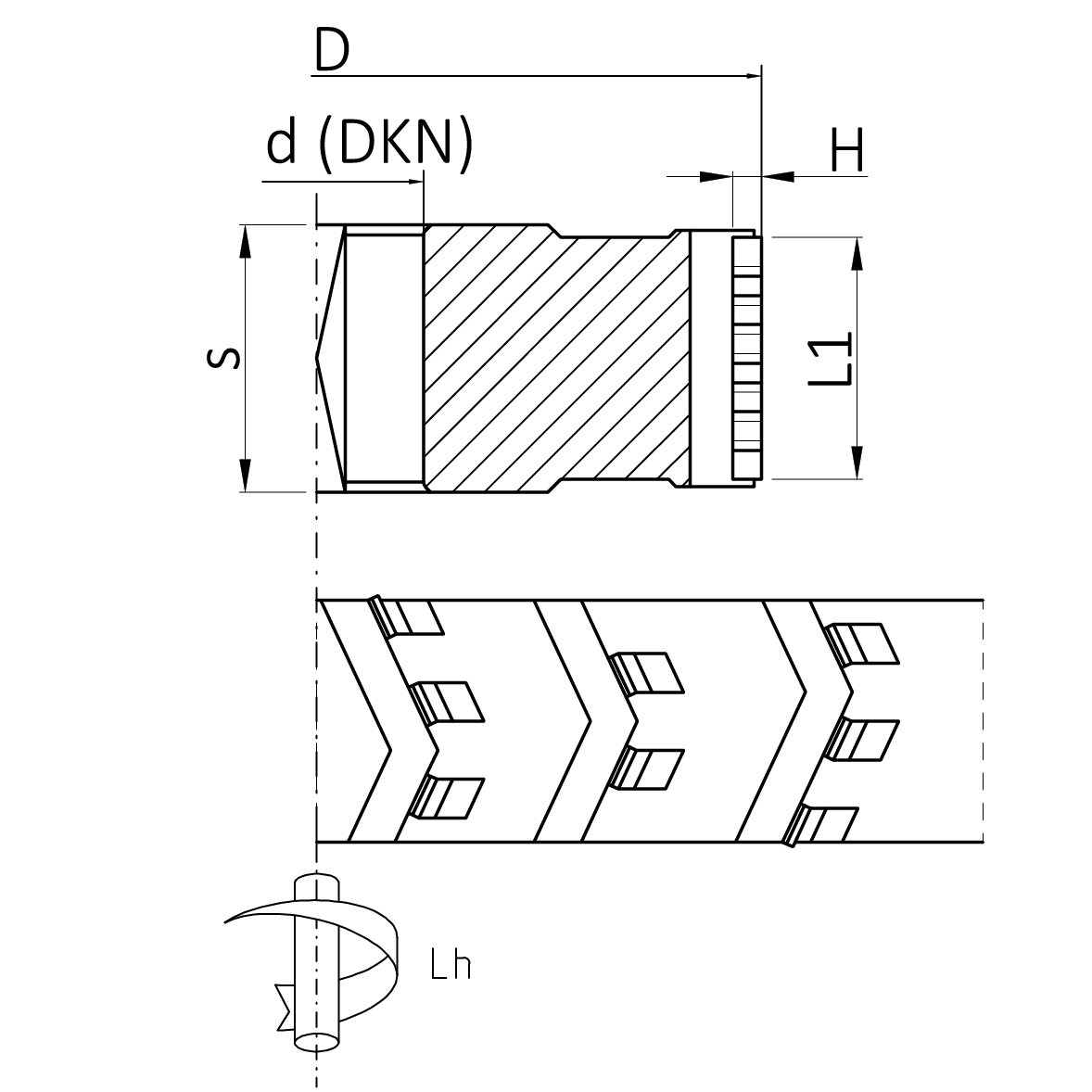

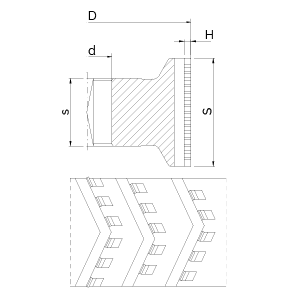

TYPE 4

TYPE 1

Table


1101020	1101021	100	24	30	3	4
1101030	1101031	125	24	30	3	4
1101032	1101033	125	24	30	4	4
1101034	1101035	125	34	30	3	4
1101046	1101047	150	34	30	4	5
1101050	1101051	180	48	35	4	5
1101054	1101055	200	24	40	6	5
1101056	1101057	200	34	40	6	5
1101060	1101061	200	24	35	6	5
1101062	1101063	200	34	35	6	5

TYPE 2

Table


1101024	1101025	100	48	30	3	4
1101026	1101027	100	65	30	3	4
1101038	1101039	125	48	30	3	4
1101044	1101045	125	65	30	4	4
1101052	1101053	180	65	35	4	5
1101058	1101059	200	65	40	6	5
1101064	1101065	200	65	35	6	5
1101066	1101067	220	65	35	4	5
1101068	1101069	220	84	35	4	5
1101070	1101071	220	110	35	4	5

TYPE 3

Table


1101022	1101023	100	48	30	2	4
1101028	1101029	100	65	30	3	4
1101096	1101097	125	48	30	2	4
1101098	1101099	125	65	30	3	4
1101100	1101101	150	48	30	2	4
1101102	1101103	150	65	30	3	4

TYPE 6

Table


1101040	-	125	65	30	3	4
1101042	-	125	65	30	4	4
1101048	-	150	48	30	4	5
1101072	-	150	48	30	3	4
1101074	-	150	65	30	3	4
1101076	-	150	65	30	4	4
1101078	-	180	48	30	3	4
1101080	-	180	48	30	4	4

TYPE 4

Table


1101036	-	125	34	30	3	4
1101086	-	125	34	30	4	4
1101088	-	150	34	30	3	4
1101090	-	150	34	30	4	4
1101092	-	180	34	30	3	4
1101094	-	180	34	30	4	4

Applications:
Panel finishing both against and with feed. A dramatic reduction of cutting effort is achieved with these tools.

Machines:
Squaring and edge banding machines with flush trimming capability.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Smaller tips for a smoother and more silent cut. Spiral wound tips with high shear angle. Low noise thanks to closed body design. Optimized tip pocket design for fast dust flow. Recommended when high removal rate is required.

Re-sharpening:
H 4 up to 8 times
H 5 up to 10 times

Contact us for a quote
