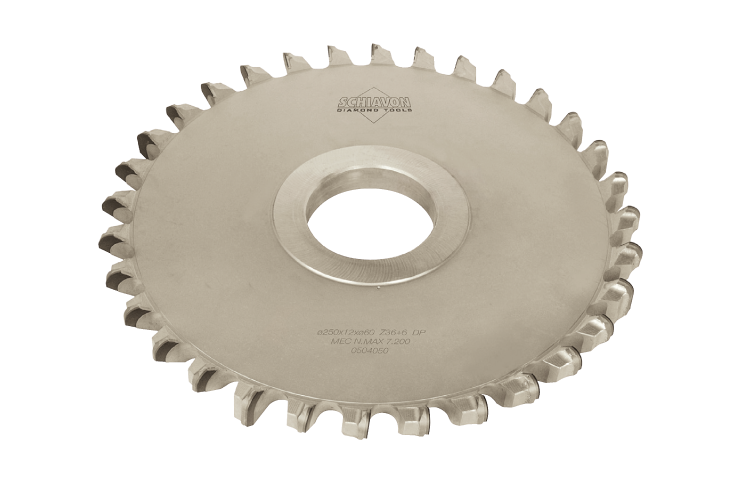

Compact Radius Hoggers

WORKINGS
Chipping
Long side chipping
Cross cut chipping

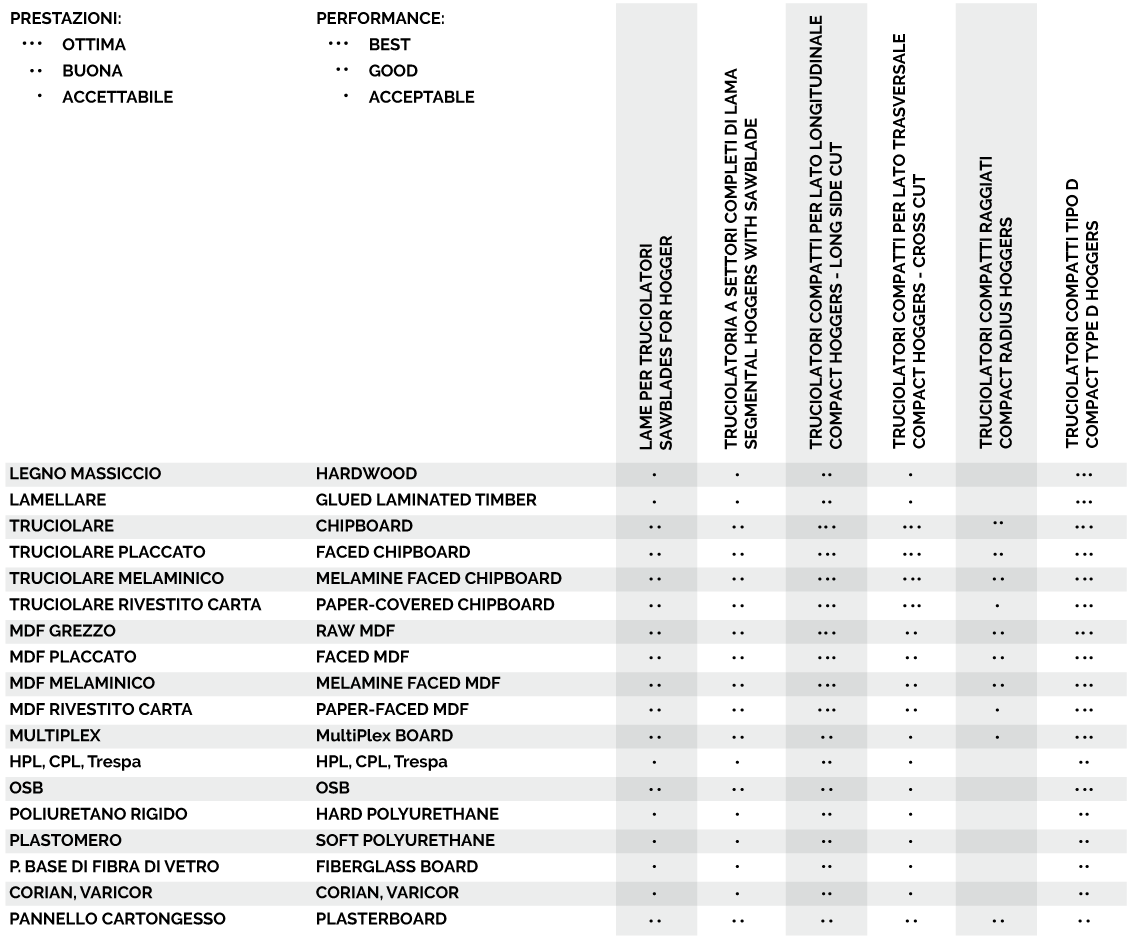

PERFORMANCES
Drawings and Specs Chart
Technical drawings

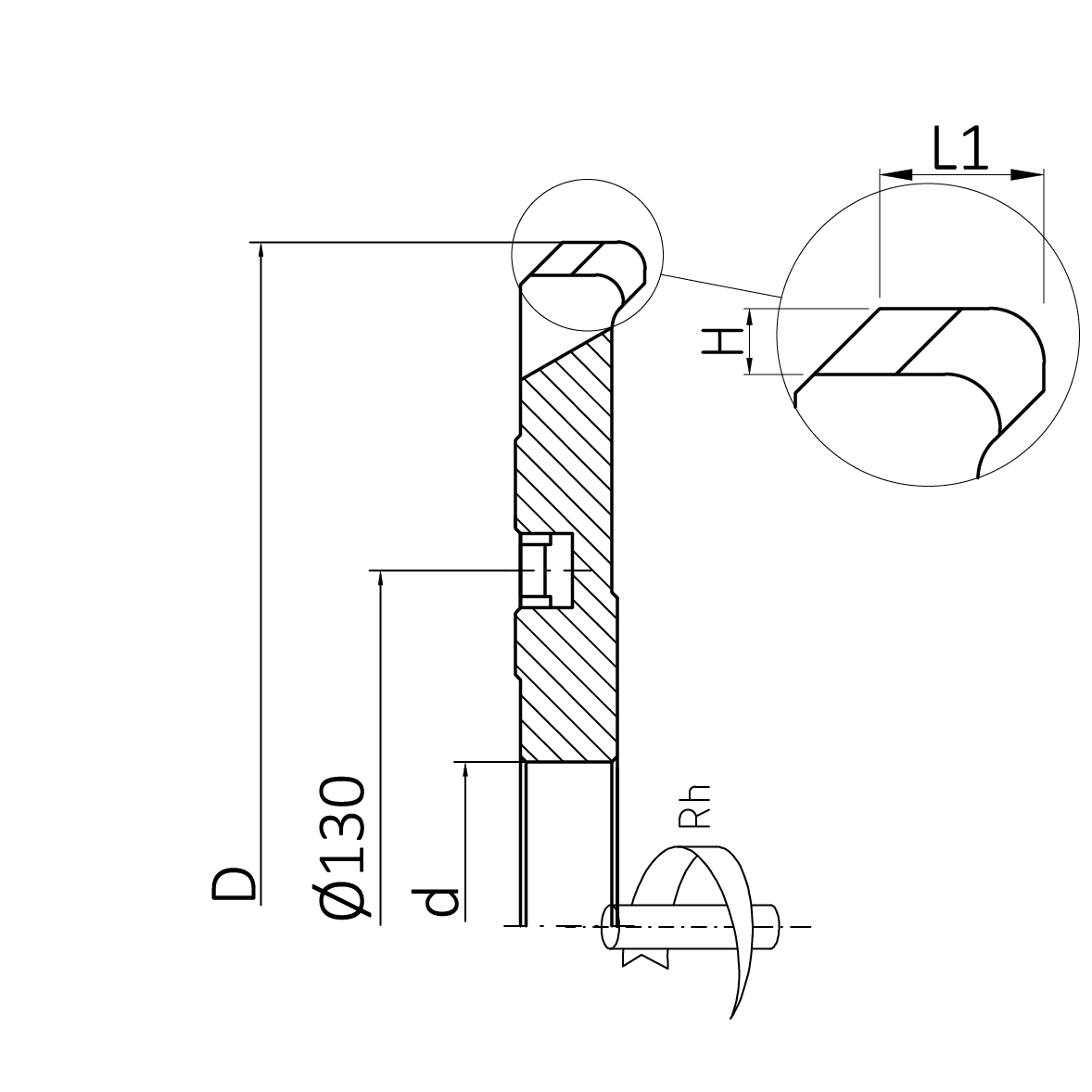

FIXAIR SYSTEM 160

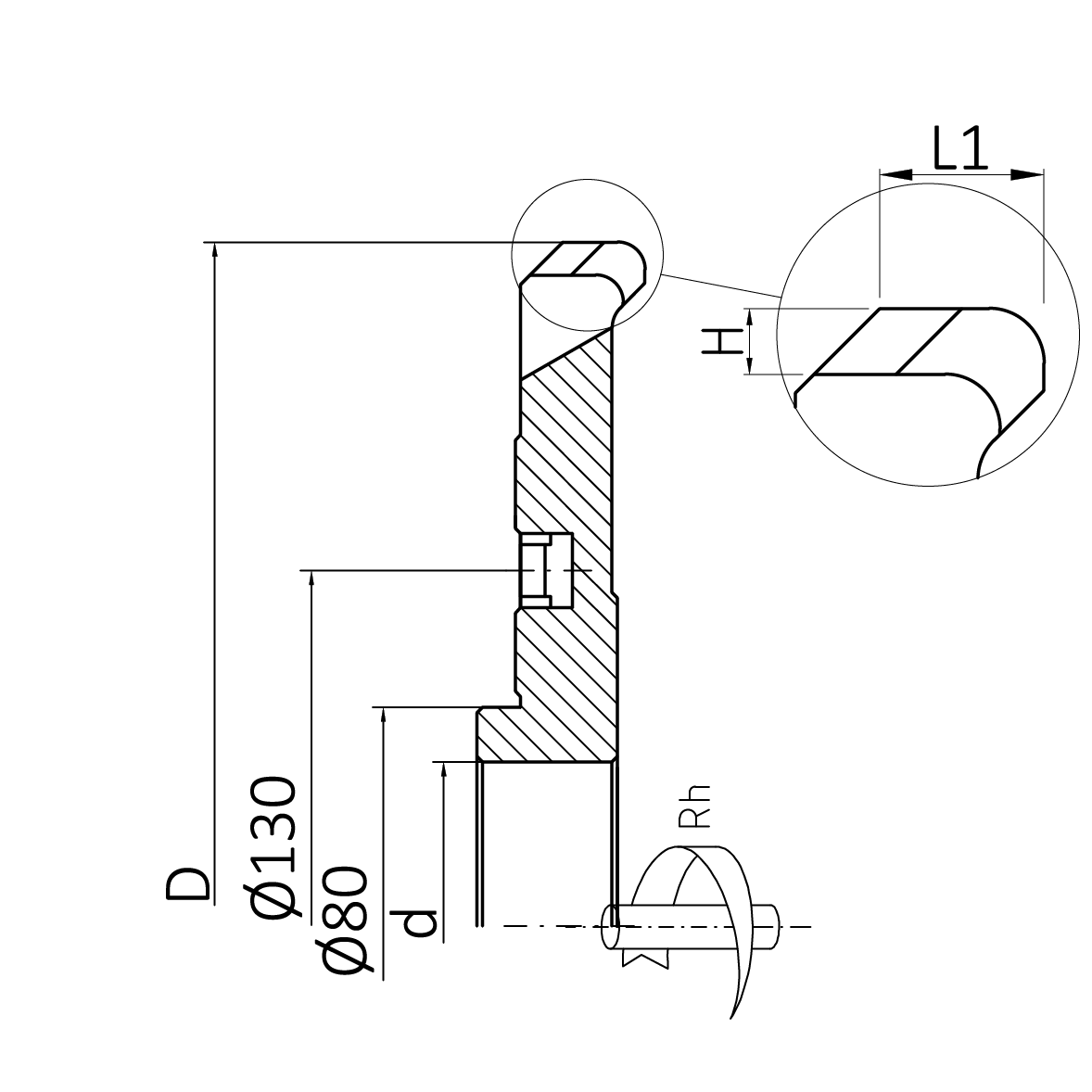

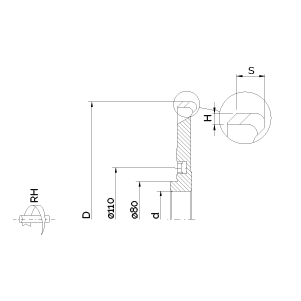

FIXAIR SYSTEM 161

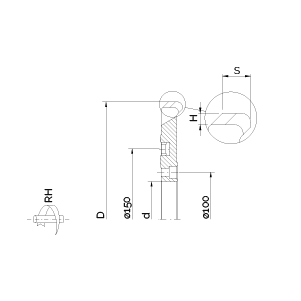

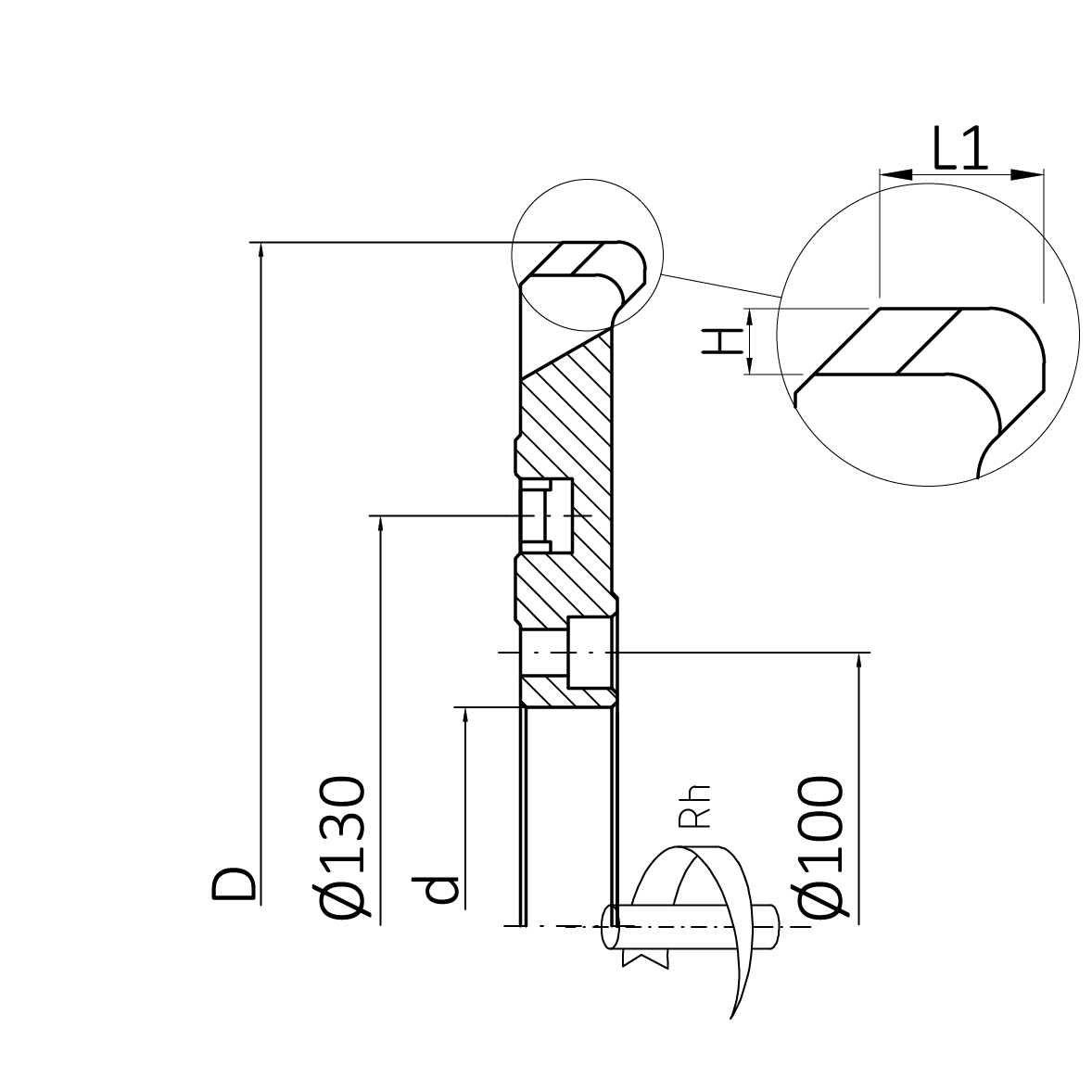

FIXAIR SYSTEM 192 MECHANICAL OR HYDRO SLEEVES TYPE EI
FIXAIR SYSTEM 160

Table
504056 504057 220 12 60 24+4 6
504058 504059 220 12 60 28+4 6
504060 504061 220 12 60 36+6 6
504062 504063 250 12 60 24+4 6
504064 504065 250 12 60 28+4 6
504066 504067 250 12 60 30+6 6
504068 504069 250 12 60 36+6 6
504070 504071 250 15 60 42+6 6
504072 504073 250 15 60 48+6 6
FIXAIR SYSTEM 161

Table
504020 504021 220 12 60 24+4 6
504022 504023 220 12 60 28+4 6
504024 504025 220 12 60 36+6 6
504026 504027 250 12 60 24+4 6
504028 504029 250 12 60 28+4 6
504030 504031 250 12 60 30+6 6
504032 504033 250 12 60 36+6 6
504034 504035 250 15 60 42+6 6
504036 504037 250 15 60 48+6 6
FIXAIR SYSTEM 192 , MECHANICAL OR HYDRO SLEEVES TYPE EI

Table
504038 504039 220 12 80 24+4 6
504040 504041 220 12 80 28+4 6
504042 504043 220 12 80 36+6 6
504044 504045 250 12 80 24+4 6
504046 504047 250 12 80 28+4 6
504048 504049 250 12 80 30+6 6
504050 504051 250 12 80 36+6 6
504052 504053 250 15 80 42+6 6
504054 504055 250 15 80 48+6 6
Applications:
With feed hogging for cross cut of panels.

Machines:
Squaring and edge banding machines using top & bottom Hogger.

Materials:
Chipboard, MDF, and plywood panels with or without veneer, or plastic coatings.

Technical Features:
R 5 radius sharpening with Negative tooth rake angle. Re-sharpen able tooth side. Reinforced low-vibration body with generous dust flow. Fitting mechanical or quick coupling Hydro sleeves. N max 7.200

Re-sharpening:
up to 13 times
Contact us for a quote
