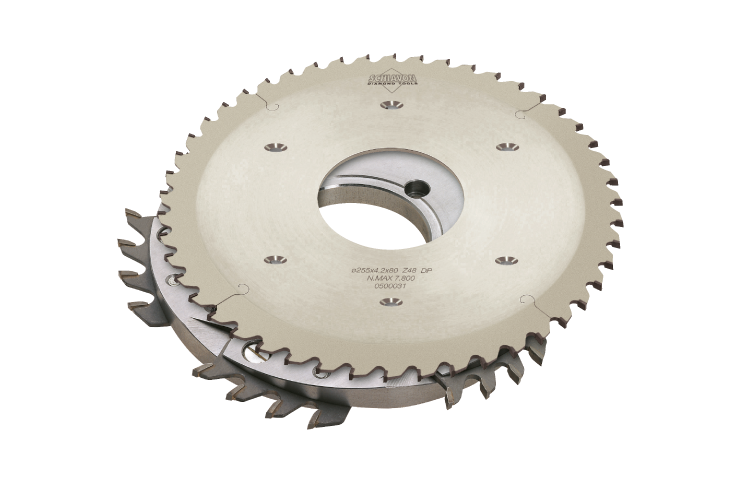

Multi Teeth Hoggers

WORKINGS
Chipping
Long side chipping
PERFORMANCES

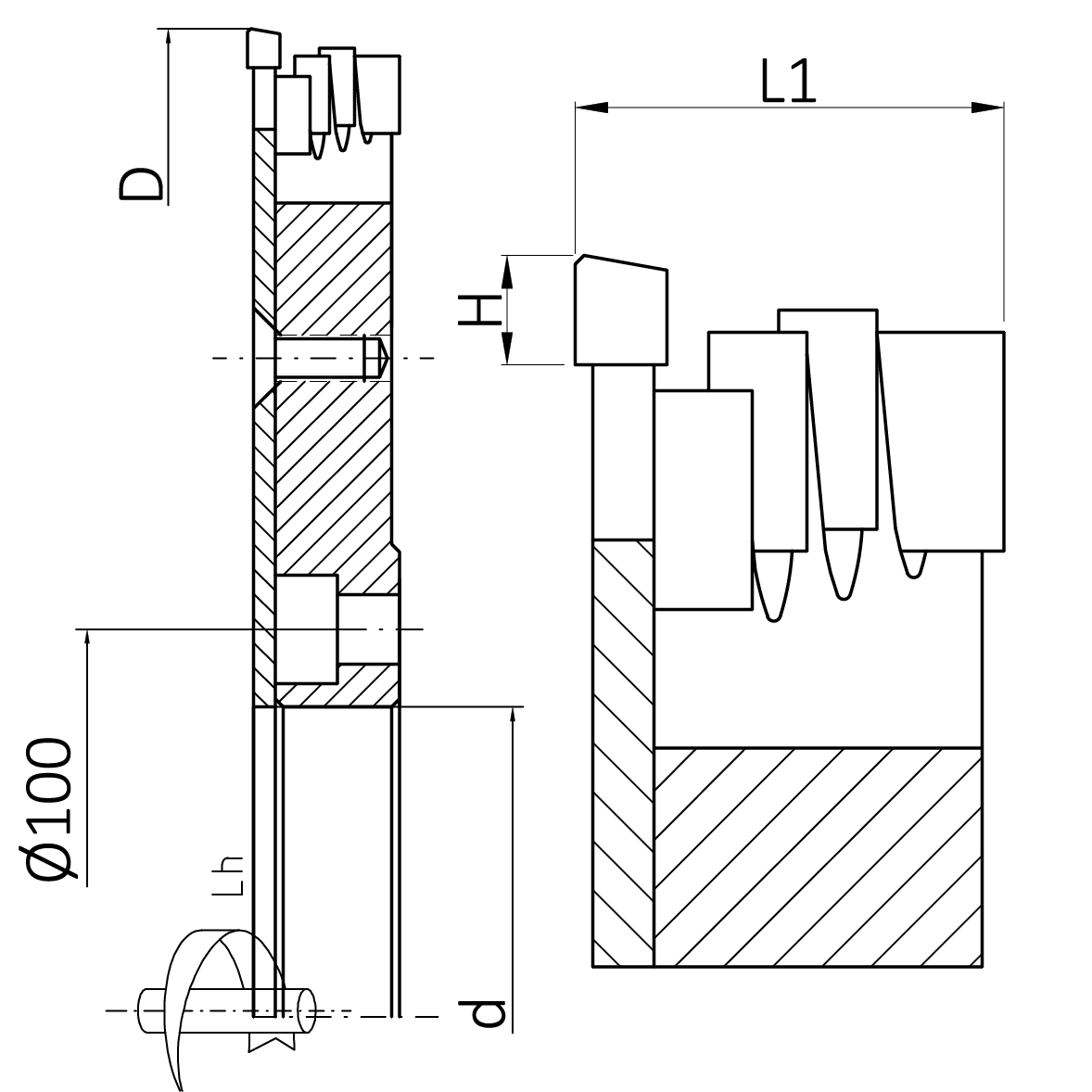

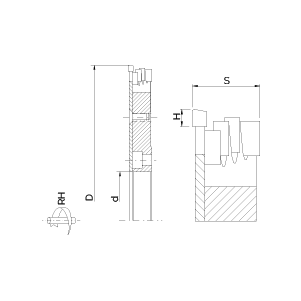

Drawings and Specs Chart
Applications:
For cross and long side cut of panels. With flow feed use if double Hogging, or against feed if the Hogger uses a scorer.

Machines:
Squaring and edge banding machines using top & bottom Hogger.

Materials:
Chipboard, MDF and plywood panels with or without veneer, or plastic coatings.

Technical Features:
Single sided sharpening with bevel. Positive tooth rake angle. Hogger segments with first tooth in PCD. Fitting mechanical or quick coupling Hydro sleeves.

Re-sharpening:
H 4 up to 6 times
H 5 up to 10 times
H 6 up to 13 times
Contact us for a quote
