Sawblades Cutters Hoggers Router Bits Accessories

HP 4

WORKINGS
Contouring
Drill milling
Eccentric holes
External milling roughing and finishing
PERFORMANCES
Drawings and Specs Chart
Technical drawings

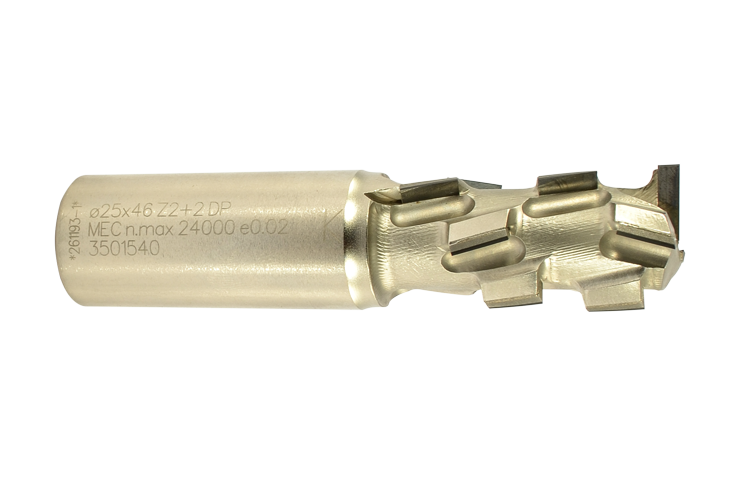

HP4
HP4 CARBIDE PLUNGE CUT

Table
3500500 3500501 20 27 50 85 20 2+2 4
3500508 3500509 20 27 55 90 25 2+2 4
3500516 3500517 20 36 50 95 20 2+2 4
3500524 3500525 20 36 55 100 25 2+2 4
3500532 3500533 25 46 50 105 20 2+2 4
3500540 3500541 25 46 55 110 25 2+2 4
3500548 3500549 25 67 55 133 25 2+2 4
3500556 3500557 25 86 55 150 25 2+2 4
3501500 3501501 20 27 50 85 20 2+2 4
3501508 3501509 20 27 55 90 25 2+2 4
3501516 3501517 20 36 50 95 20 2+2 4
3501524 3501525 20 36 55 100 25 2+2 4
3501532 3501533 25 46 50 105 20 2+2 4
3501540 3501541 25 46 55 110 25 2+2 4
3501548 3501549 25 67 55 133 25 2+2 4
3501556 3501557 25 86 55 150 25 2+2 4
Applications:
Finishing tool for cutting panels at high feed rates.

Machines:
Router CNC.

Materials:
chipboard, MDF and plywood panels with or without veneer.

Technical features:
full configuration Z2 effective. Polished PCD tips with pos./neg. cutting angle which, together with the full effective arrangement of the Z2 tips, offers a fairly good finish at high feed rate, low noise and low vibration rate. Radius pocket for chips for better powder flow. Available in hard metal or PCD plunge cut. Ground shank with h6 tolerance for mounting on Hydro, Tribos or Heat-shrink tool holders.

Regrinding:
up to 8 times
Contact us for a quote
