Dowell Boring Bits

WORKINGS
Blind holes
PERFORMANCES
Drawings and Specs Chart

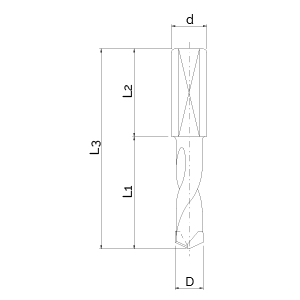

Technical drawings

Type
Type

Table
3001012 3001013 5 32 ,5 25 57 ,5 10 2 3
3001016 3001017 5 ,5 32 ,5 25 57 ,5 10 2 3
3001020 3001021 6 32 ,5 25 57 ,5 10 2 3
3001024 3001025 6 ,5 32 ,5 25 57 ,5 10 2 3
3001026 3001027 7 32 ,5 25 57 ,5 10 2 3
3001028 3001029 8 32 ,5 25 57 ,5 10 2 3
3001030 3001031 7 ,5 32 ,5 25 57 ,5 10 2 3
3001032 3001033 8 ,5 32 ,5 25 57 ,5 10 2 3
3001036 3001037 10 32 ,5 25 57 ,5 10 2 3
3001040 3001041 10 ,5 32 ,5 25 57 ,5 10 2 3
3001044 3001045 11 32 ,5 25 57 ,5 10 2 3
3001048 3001049 12 32 ,5 25 57 ,5 10 2 3
3001052 3001053 13 32 ,5 25 57 ,5 10 2 3
3001112 3001113 5 45 25 70 10 2 3
3001116 3001117 5 ,5 45 25 70 10 2 3
3001120 3001121 6 45 25 70 10 2 3
3001124 3001125 6 ,5 45 25 70 10 2 3
3001126 3001127 7 45 25 70 10 2 3
3001128 3001129 8 45 25 70 10 2 3
3001130 3001131 7 ,5 45 25 70 10 2 3
3001132 3001133 8 ,5 45 25 70 10 2 3
3001136 3001137 10 45 25 70 10 2 3
3001140 3001141 10 ,5 45 25 70 10 2 3
3001144 3001145 11 45 25 70 10 2 3
3001148 3001149 12 45 25 70 10 2 3
3001152 3001153 13 45 25 70 10 2 3
Applications:
Blind bore drilling for hinges or furniture hardware.

Machines:
On line or off line drilling machines, vertical or horizontal CNC Routers.

Materials:
Plastic, chipboard, MDF and plywood panels with or without veneer.

Technical Features:
Z2 configuration. Excellent and chipping free drilling. High precision bore. Ø10 mm shank with flat.

Re-sharpening:
up to 3 times
