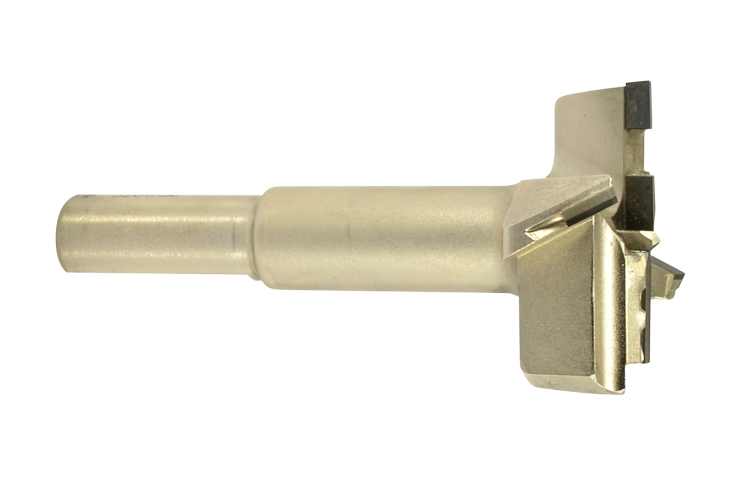

Hinge Boring Bits

WORKINGS
Blind holes
PERFORMANCES
Drawings and Specs Chart

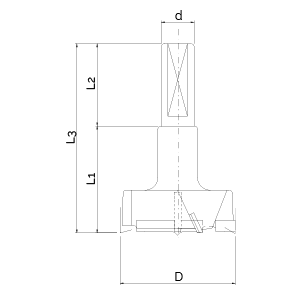

Technical drawings

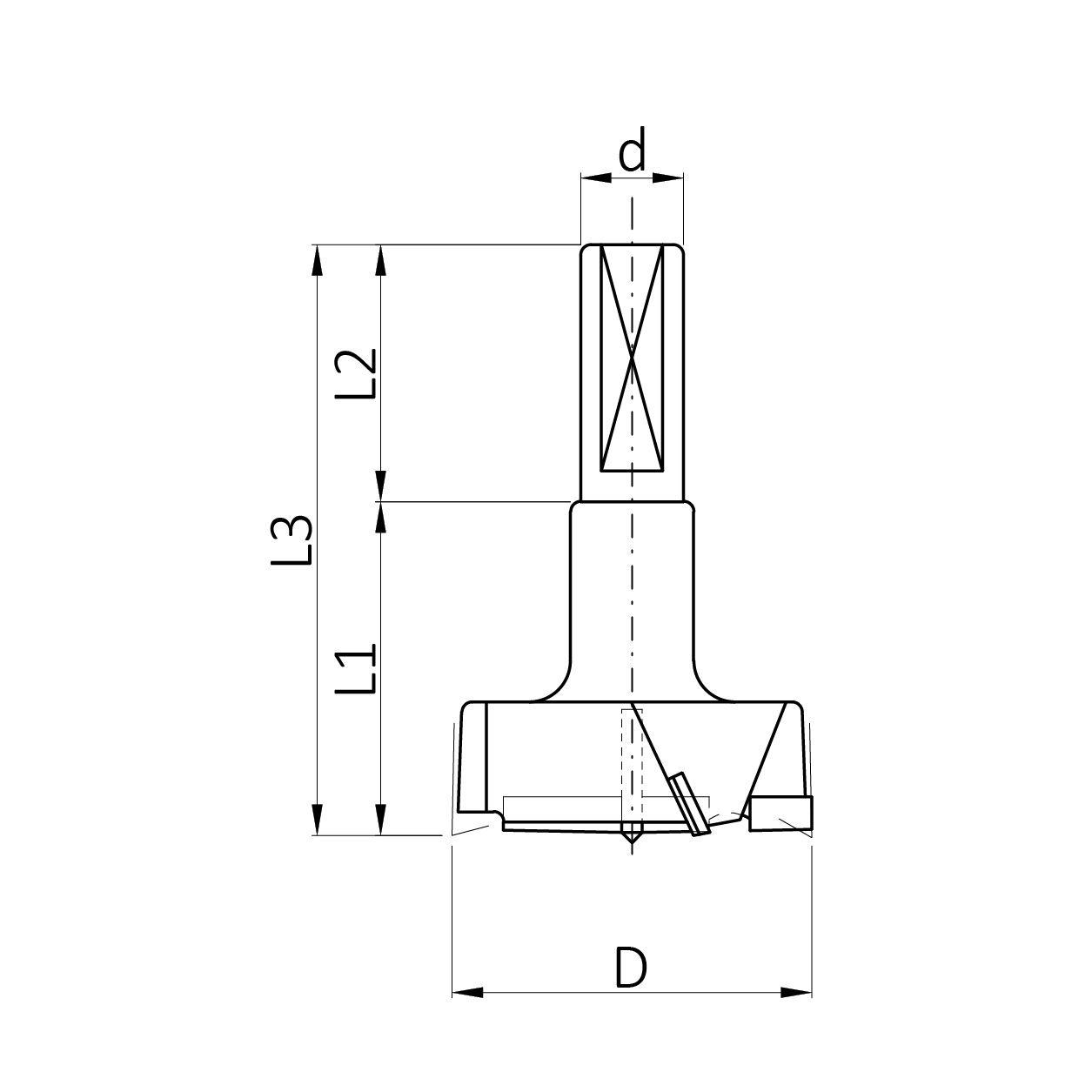

Type 1

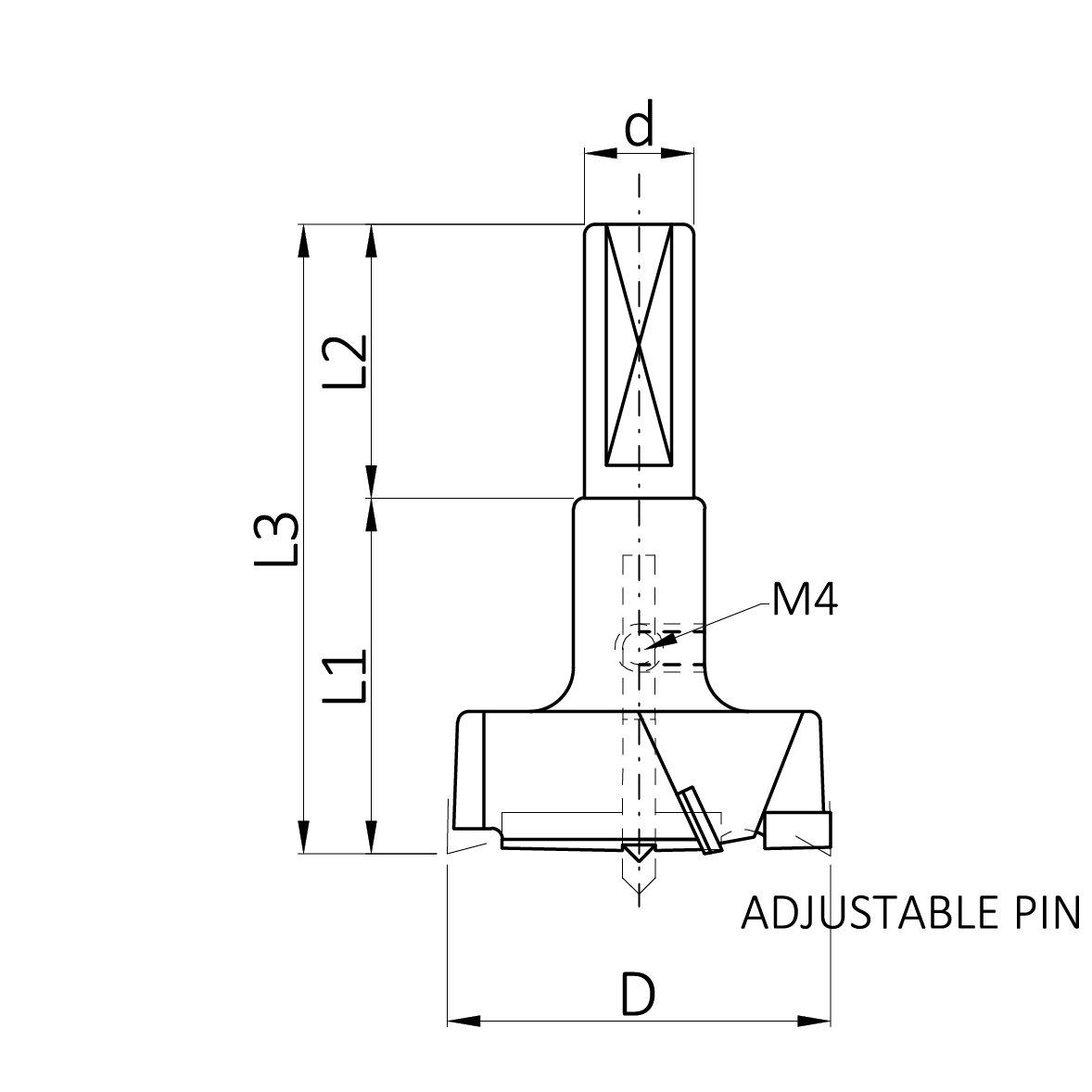

TYPE 2 ADJUSTABLE PIN
TYPE 1

Table
3201510 3201511 12 32 ,5 25 57 ,5 10 2+2 4
3201512 3201513 14 32 ,5 25 57 ,5 10 2+2 4
3201516 3201517 15 32 ,5 25 57 ,5 10 2+2 4
3201520 3201521 16 32 ,5 25 57 ,5 10 2+2 4
3201524 3201525 18 32 ,5 25 57 ,5 10 2+2 4
3201528 3201529 20 32 ,5 25 57 ,5 10 2+2 4
3201532 3201533 22 32 ,5 25 57 ,5 10 2+2 4
3201536 3201537 24 32 ,5 25 57 ,5 10 2+2 4
3201540 3201541 25 32 ,5 25 57 ,5 10 2+2 4
3201544 3201545 26 32 ,5 25 57 ,5 10 2+2 4
3201548 3201549 28 32 ,5 25 57 ,5 10 2+2 4
3201552 3201553 30 32 ,5 25 57 ,5 10 2+2 4
3201556 3201557 35 32 ,5 25 57 ,5 10 2+2 4
3201560 3201561 35 ,2 32 ,5 25 57 ,5 10 2+2 4
3201564 3201565 35 ,5 32 ,5 25 57 ,5 10 2+2 4
3201568 3201569 40 32 ,5 25 57 ,5 10 2+2 4
3201572 3201573 45 32 ,5 25 57 ,5 10 2+2 4
3201576 3201577 50 32 ,5 25 57 ,5 10 2+2 4
3201580 3201581 55 32 ,5 25 57 ,5 10 2+2 4
3201710 3201711 12 45 25 70 10 2+2 4
3201712 3201713 14 45 25 70 10 2+2 4
3201716 3201717 15 45 25 70 10 2+2 4
3201720 3201721 16 45 25 70 10 2+2 4
3201724 3201725 18 45 25 70 10 2+2 4
3201728 3201729 20 45 25 70 10 2+2 4
3201732 3201733 22 45 25 70 10 2+2 4
3201736 3201737 24 45 25 70 10 2+2 4
3201740 3201741 25 45 25 70 10 2+2 4
3201744 3201745 26 45 25 70 10 2+2 4
3201748 3201749 28 45 25 70 10 2+2 4
3201752 3201753 30 45 25 70 10 2+2 4
3201756 3201757 35 45 25 70 10 2+2 4
3201760 3201761 35 ,2 45 25 70 10 2+2 4
3201764 3201765 35 ,5 45 25 70 10 2+2 4
3201768 3201769 40 45 25 70 10 2+2 4
3201772 3201773 45 45 25 70 10 2+2 4
3201776 3201777 50 45 25 70 10 2+2 4
3201780 3201781 55 45 25 70 10 2+2 4
TYPE 2 ADJUSTABLE PIN

Table
3202516 3202517 15 32 ,5 25 57 ,5 10 2+2 4
3202528 3202529 20 32 ,5 25 57 ,5 10 2+2 4
3202540 3202541 25 32 ,5 25 57 ,5 10 2+2 4
3202552 3202553 30 32 ,5 25 57 ,5 10 2+2 4
3202556 3202557 35 32 ,5 25 57 ,5 10 2+2 4
3202568 3202569 40 32 ,5 25 57 ,5 10 2+2 4
3202572 3202573 45 32 ,5 25 57 ,5 10 2+2 4
3202576 3202577 50 32 ,5 25 57 ,5 10 2+2 4
3202580 3202581 55 32 ,5 25 57 ,5 10 2+2 4
3202716 3202717 15 32 ,5 25 70 10 2+2 4
3202728 3202729 20 32 ,5 25 70 10 2+2 4
3202740 3202741 25 32 ,5 25 70 10 2+2 4
3202752 3202753 30 32 ,5 25 70 10 2+2 4
3202756 3202757 35 32 ,5 25 70 10 2+2 4
3202768 3202769 40 32 ,5 25 70 10 2+2 4
3202772 3202773 45 32 ,5 25 70 10 2+2 4
3202776 3202777 50 32 ,5 25 70 10 2+2 4
3202780 3202781 55 32 ,5 25 70 10 2+2 4
Applications:
Bore drilling for hinges or furniture hardware.

Machines:
On line or off line drilling machines, vertical or horizontal CNC Routers.

Materials:
Plastic, chipboard, MDF and plywood panels with or without veneer.

Technical Features:
Z2 + 2 configuration. Excellent and chipping free drilling. Split cut for better penetration. Low height central pin. High precision bore. Ø10 mm shank with flat.
