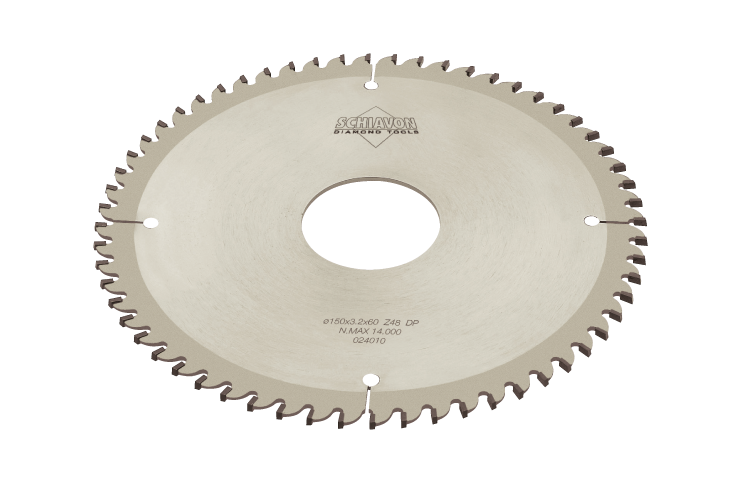

Scorers for Double End Tenoners

WORKINGS
Pre-scoring
Top and bottom scoring
PERFORMANCES
Drawings and Specs Chart

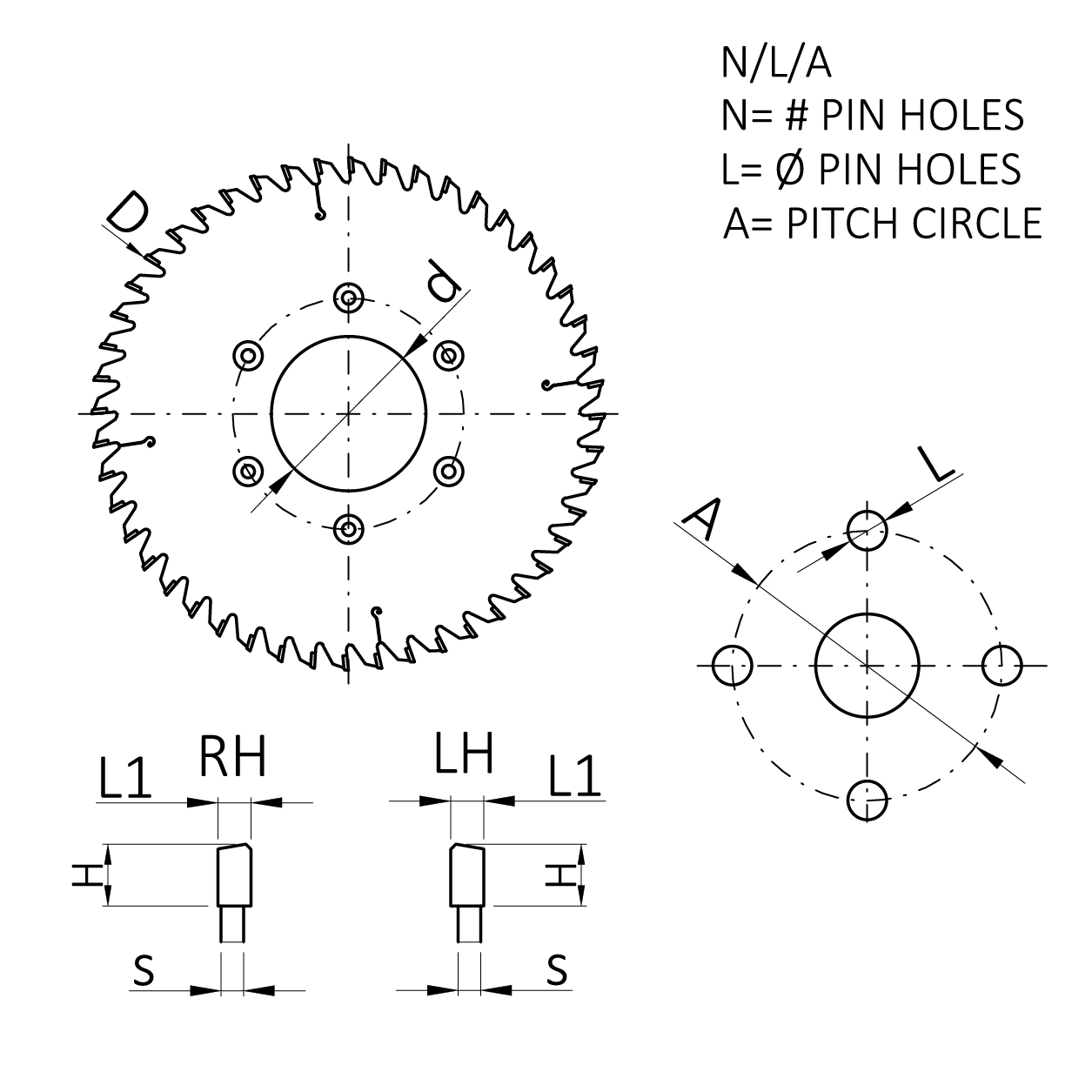

Technical drawings

H6

Table
204000 204001 150 3 ,2 55 32 6
204002 204003 150 3 ,2 55 36 6
204004 204005 150 3 ,2 55 48 6
204006 204007 150 3 ,2 60 32 6
204008 204009 150 3 ,2 60 36 6
204010 204011 150 3 ,2 60 48 6
204012 204013 180 3 ,2 30 36 6
204014 204015 180 3 ,2 30 48 6
204016 204017 180 3 ,2 50 24 6
204018 204019 180 3 ,2 50 36 6
204020 204021 180 3 ,2 50 48 6
204022 204023 180 3 ,2 65 36 6
204024 204025 180 3 ,2 65 48 6
204026 204027 200 3 ,2 30 36 6
204028 204029 200 3 ,2 30 48 6
204030 204031 200 3 ,2 30 64 6
204032 204033 200 3 ,2 50 36 6
204034 204035 200 3 ,2 50 48 6
204036 204037 200 3 ,2 50 54 6
204038 204039 200 3 ,2 65 36 6
204040 204041 200 3 ,2 65 48 6
204042 204043 200 3 ,2 65 64 6
Applications:
Pre-scoring.

Machines:
Suitable for double end tenoners with or without Jump Head.

Materials:
Chipboard, MDF, and plywood panels with or without veneer, melamine paper or plastic coatings.

Technical Features:
ATB tooth shape with positive rake. Cutting depth 2-3 mm. Fitting mechanical, screw type or quick coupling sleeves.

Re-sharpening:
up to 13 times
Contact us for a quote
